Pesticide spraying drone for farming

Since 2012, we have been specialized in developing agricultural plant protection drones.We have developed and produced single-rotor unmanned helicopter and multi-rotor intelligent suspended plant protection drone with independent intellectual property rights and international advanced technology. QF TP22 (22L) is one of our latest generation of highly configured drone series.

Its characteristics: easy to carry, especially suitable for precise spraying of pesticides in plots.

Basic parameters
Operation mode: Manual mode;AB point mode;Fully autonomous spraying mode
Suitable for spraying crops: Any plant
Working hours: 24 hours

Rated 4.6/5 based on 244 customer reviews

QFTP-22 is our latest electric drone model. It has the characteristics of long endurance, high efficiency, high precision, easy operation, convenient maintenance, multi-functional, high-cost performance, etc. It has won the favor of all customers.

1.The Main Parameter:

The loading weight: 52KG


Dimension: 1360mmx1360mmx680mm

Endurance Time:20min

Tank Volume:22L

Spray Height:1-3m

Spray Width: 6-8m

Spray flow:4-8L/min

Spraying efficiency: 15-25acres/hour

2. The drone is equipped with auto obstacle avoidance radar which assures flight safety:

The QFTP-22 drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which assure the safe and reliable flight. Also we equip the drone with FPV camera , you can see the situation

around it clearly,that also assures flight safety.

3 .The drone body is made of composite material specially for aviation(carbon fibre and aluminium alloy ), which makes the drone much lighter but much stronger and more durable.

4.It is equipped with multi-function spraying system, so it can be used for different applications.

Flexible spraying system, it can reduce vibration and prolong the life of spraying system .We can also equip different nozzles for different crops and applications.

The drone is equipped with improved nozzle, which can make sure uniform spraying and excellent spraying performance.

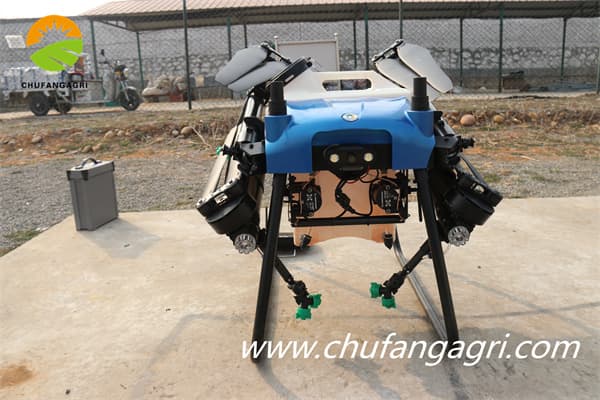

5.Foldable design, the drone is easy to transport.

6.Charger Power: 3600W

Smart charger with communication function, the voltage level is 180V-240V,which can match with the voltage level of most countries in the world. It can charge the battery quickly.

Smart lithium battery with the volume of 20000mAh, easy to operate and fix up. One battery can be used about 1000 times.

We equip customized generator for the drone, which can make sure stable electric supply.

7.Integrated Remote Controller ,you can operate the drone easily.
