Drone sprayer for agriculture

HENAN CHUFANG AGRICULTURE IMPORT&EXPORT CO., LTD.is Chinese leading integrated agriculture service provider. Relying on our 20 years of experience and resources in the agriculture chemical industry, agriculture drone, and agriculture service, we are committed to providing one-stop integrated agriculture service for our global partners.

Rated 5/5 based on 207 customer reviews

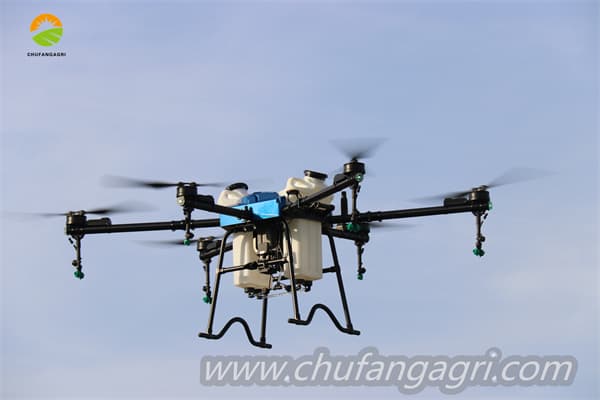

QF TP-32(32L) our latest electric drone model. It has the characteristics of long, endurance, high efficiency, high-precision, easy operation, convenient maintenance, multi-functional, high-cost performance, etc. It has won the favor of all customers.

1、The Main Parameter:

The loading weight: 42KG

Dimension: 2065mmx1200mmx890mm

Endurance Time:20min

Tank Volume:32L

Spray Height:1-3m

Spray Width: 6-9m

Spray flow:4-8L/min

Spraying efficiency: 40 acres/hour

2. Updated flight control system , which makes the drone performance excellent:

4 core CPU with excellent performance, so the DP drone has a strong “core”.
Triple redundant IMU, double redundant barometer, in case single hardware break, the drone can still work.
Dual shock absorber structure with better seismic resistance, which makes the drone cope with complex vibration environment, even if the frame ages, it will still work stably and reduce the maintenance cost.

3. The drone is equipped with auto obstacle avoidance radar which assures flight


The TP-32 drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which assure the safe and reliable flight. Also we equip the drone with FPV camera , you can see the situation around it clearly,that also assures flight safety.

4. The drone body is made of composite material specially for aviation(carbon fibre and aluminium alloy ), which makes the drone much lighter but much stronger and more durable.

5. It is equipped with multi-function spraying system, so it can be used for different applications.

Flexible spraying system, it can reduce vibration and prolong the life of the spraying system . We can also equip different nozzles for different crops and applications. The drone is equipped with improved nozzle, which can make sure uniform spraying and excellent spraying performance.

It can be equipped with granula spraying system easily, which can be used for spraying seeds, granular fertilizer, etc.

6. Foldable design, the drone is easy to transport.

7. Charger Power: 3000W

Smart charger with communication function, the voltage level is 180V-240V, which can match the voltage level of most countries in the world. It can charge the battery quickly.

Smart lithium battery with volume of 22000mAh, easy to operate and fix up. One battery can be used about 1000 times.

8. We equip customized generator for the drone, which can make sure stable electric supply.

9. Integrated Remote Controller, you can operate the drone easily.
